Demonstrator Chip Dolphin.SNN

The need

Purpose of Dolphin.SNN : Research on coupled oscillators and their dynamics in real-world networks (e.g., network topologies, synchronization behavior), as well as potential applications in neuromorphic and edge computing contexts.

Key Features

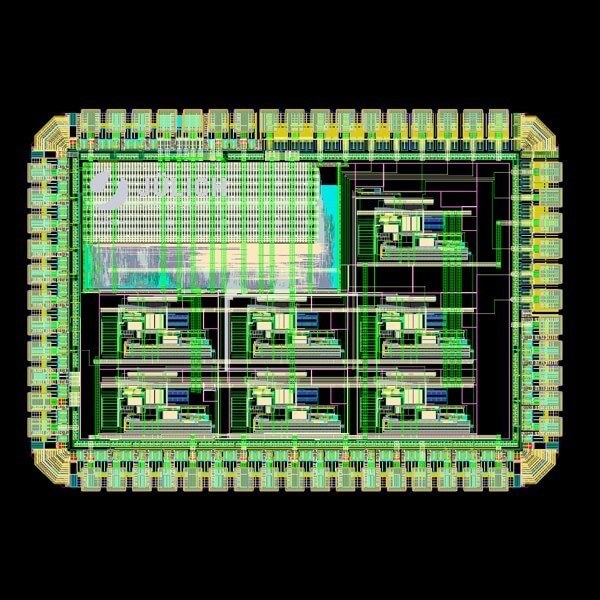

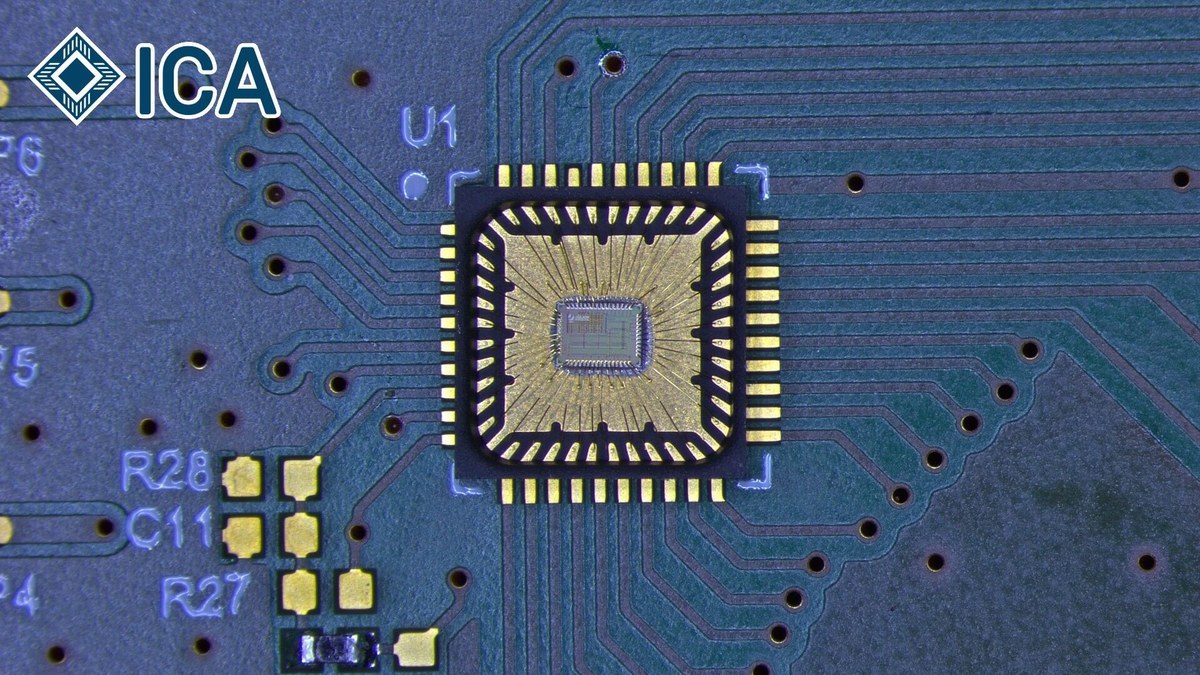

  • 1.4 x 1 mm 28nm CMOS Chip in QFN 40
  • 7 coupled PLLs for Oscillatory Neural Network
  • Analog and multilevel phase coupling
  • Scalable ONN with all to all and multi cluster coupling

  • Impact

      Dolphin.SNN will be used to analyze coupled oscillator dynamics under different coupling schemes by going beyond traditional simulation approaches. Such a platform could pave way for future implementations in analyzing large-scale networks such as power grids or for computing using Oscillatory Neural Network (ONNs).
